filter cloth, filter paper, felt and other filter accessories. We
have been in filtration material area nearly
20 years since 1997. We have enough experience of filter materials
for all kinds of filtration in air
filtration, liquid filtration, solid filtration etc. Our materials
are exporting to worldwide in Europe,
America, Africa, Asia, etc. We have our own factory in Shanghai and
cooperating factories in our area,
competitve factory price with good quality is our big avantage.
Product description:
We' re professional manufacturer& supplier of Nylon filter mesh&
Polyester filter mesh.
With all available items and size you need.
| Specification | Mesh count | Wire diameter | Mesh opeating | Opening rate | Thickness |
| 5 | 13 | 500 | 1500 | 56 | 1000 |
| 6 | 15 | 400 | 1267 | 58 | 840 |
| 7 | 18 | 350 | 1079 | 57 | 640 |
| 8 | 20 | 350 | 900 | 52 | 645 |
| 9 | 24 | 200 | 911 | 67 | 370 |
| 9 | 24 | 250 | 861 | 60 | 460 |
| 9 | 24 | 300 | 811 | 53 | 570 |
| 10 | 25 | 250 | 750 | 56 | 530 |
| 12 | 30 | 300 | 533 | 41 | 495 |
| 14 | 35 | 200 | 514 | 52 | 380 |
| 16 | 40 | 200 | 425 | 46 | 400 |
| 16 | 40 | 250 | 375 | 36 | 420 |
| 17 | 42 | 200 | 388 | 44 | 380 |
| 18 | 45 | 220 | 366 | 37 | 400 |
| 20 | 50 | 200 | 300 | 36 | 375 |
| 24 | 60 | 150 | 267 | 41 | 305 |
| 28 | 70 | 150 | 207 | 34 | 278 |
| 30 | 76 | 120 | 213 | 41 | 230 |
| 32 | 80 | 100 | 213 | 46 | 240 |
| 36 | 90 | 100 | 178 | 41 | 195 |
| 40 | 100 | 100 | 150 | 36 | 192 |
| 44 | 110 | 100 | 127 | 31 | 175 |
| 48 | 120 | 80 | 128 | 38 | 150 |
| 56 | 142 | 60 | 120 | 44 | 110 |
| 59 | 150 | 60 | 110 | 42 | 98 |
| 64 | 163 | 60 | 96 | 38 | 120 |
| 72 | 183 | 50 | 89 | 41 | 90 |
| 80 | 203 | 50 | 75 | 36 | 93 |
| 88 | 224 | 40 | 74 | 42 | 65 |
| 96 | 244 | 40 | 64 | 38 | 76 |
| 100 | 254 | 40 | 60 | 36 | 78 |
| 104 | 264 | 40 | 56 | 34 | 79 |
| 120 | 305 | 40 | 43 | 27 | 80 |
Product details:
Product advantages :
1. High mechanical strength, good toughness, high tensile and
compressive strength. The specific tensile strength is higher than
that of metal, and the specific compressive strength is comparable
to that of metal, but its rigidity is less than that of metal. The
tensile strength is close to the yield strength, more than twice as
high as ABS. The ability to absorb shock, stress and vibration is
strong, and the impact strength is much higher than that of general
plastics, and is better than acetal resin.
2. Outstanding fatigue resistance, the parts can maintain the
original mechanical strength after repeated bending. Common
escalator handrails and new bicycle plastic rims are often used in
occasions where the periodic fatigue effect is extremely obvious.
3. High softening point and heat resistance (such as nylon 46, high
crystalline nylon has a high heat distortion temperature and can be
used for a long time at 150 degrees. After PA66 is reinforced with
glass fiber, its heat distortion temperature can reach 250 degrees
or more).
4. The surface is smooth, the friction coefficient is small, and it
is wear-resistant. It is self-lubricating when used as a movable
mechanical component and has low noise. It can be used without
lubricant when the friction effect is not too high; if lubricant is
really needed to reduce friction or help heat dissipation, water,
oil, grease, etc. can be selected. Therefore, it has a long service
life as a transmission component.
Product application:
Nylon mesh is widely used in industrial filtration, petroleum,
chemical, printing and other products with complete specifications
and good quality. Special specifications can be customized. And
silk screen printing, paint filtration, fishing and other
industries. Nylon mesh has the effect of high temperature
resistance and alkali resistance, and the polyethylene mesh has the
effect of acid resistance, and each has its own advantages.
Product workshop:

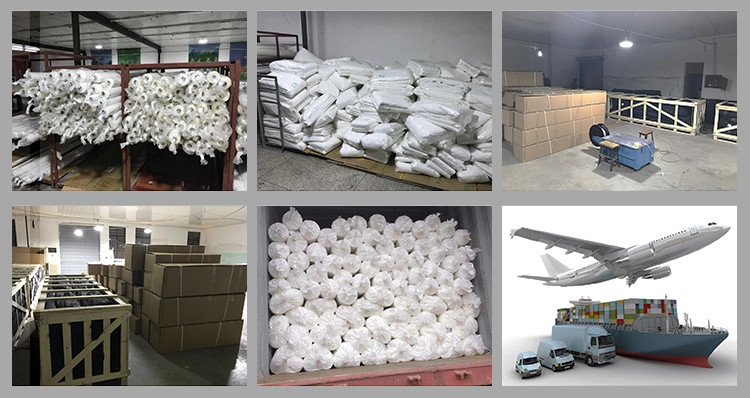

Product packaging:
