PrProfessional,Polyester Printing Screen Mesh Direct Manufacture Supply, Bolting Cloth Tension Size Summary

1) 1) DPP165 7D material 20-24N/cm Tension Stable Tension 15-18 N/cm

2) 2) DPP165 9D material 24-28N/cm Tension Stable Tension 17-21 N/cm

3) 3) DPP150 9D material 27-30N/cm Tension Stable Tension 21-24 N/cm

4) 4) DPP150 12D material 28-32N/cm Tension Stable Tension 21-25 N/cm

5) 5) DPP140 12D material 28-32N/cm Tension Stable Tension 21-25 N/cm

6) 6) DPP140 9D material 26-30N/cm Tension Stable Tension 21-25 N/cm

7) 7) DPP120 15D material 30-35N/cm Tension Stable Tension 23-27 N/cm

8) 8) DPP120 12D material 28-33N/cm Tension Stable Tension 22-26 N/cm

9) 9) DPP120 12D material 38-32N/cm Tension Stable Tension 22-26 N/cm

1)10) DPP120 9D material 25-29N/cm Tension Stable Tension 18-22 N/cm

The test results summary of DPP 165-120 AAA Grade:

1) DPP 165 7D material, white, strength 305N longitude, strength 361 latitude,

14% elongation, 10 elongation latitude,tension 30N, stable tension 23N/cm.

2) DPP 165 9D material, yellow, strength 380N longitude, strength 430 latitude,

16% elongation, 11 elongation latitude,tension 30N, stable tension 23N/cm

3) DPP 150 9D material, white, strength 285N longitude, strength 382 latitude,

11% elongation, 10 elongation latitude,tension 30N, stable tension 23N/cm

4) DPP 140 12D material, yellow, strength 300N longitude, strength 410 latitude,

13% elongation, 11 elongation latitude,tension 35N, stable tension 27N/cm

5) DPP 140 9D material, yellow, strength 370N longitude, strength 418 latitude,

14% elongation, 10 elongation latitude,tension 33N, stable tension 26N/cm

6) DPP 140 7D material, yellow, strength 369N longitude, strength 510 latitude,

12% elongation, 10 elongation latitude,tension 28N, stable tension 33N/cm

7) DPP 120 12D material, yellow, strength 413N longitude, strength 422 latitude,

17% elongation, 14 elongation latitude,tension 34N, stable tension 27N/cm

8) DPP 120 9D material, yellow, strength 310N longitude, strength 320 latitude,

16% elongation, 12 elongation latitude,tension 30N, stable tension 23N/cm

Printing mesh plants:

Gezi screen mesh factory is one of the leading manufactuer and exporter of all kinds of screen mesh products in China.
We' re concentrated in Screen printing mesh, Flour sieve mesh,Nylon filter mesh,Polyester filter mesh,PE mesh, HDPE filter mesh,Insect net, Mesh filter bag, Mesh filter disc, ect. All mesh products have passed Quality Management System ISO 9001 :2008.
We also have complete factory inspection report, no sillicon certificate, 100% nylon or polyester material certificate, mesh aperture size certificate, etc.

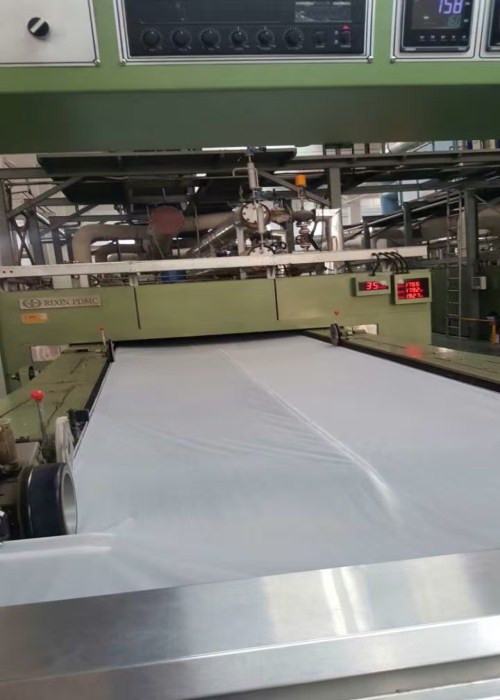

Our screen mesh workshop is equipped with 100 Swiss Sulzer ruti weaving machines, 4 Benninger high speed warping machines, 1 water washing heat setting machines. The width of weaving machines: 280cm, 330cm, 360cm, 390cm.

Our PE or HDPE worhshops have 80 looms, with 10-15 workers, 3 sets drawing workshops, with big output per year.

Countries USA, Canada, Mexico, Venezuela, UK, Spain, Pakistan, Thailand, Malaysia, Turkey, Australia, Egypt, India, Brazil,etc. are main exporters of us at present, and other customers from Europe, America, Middle east, Southeast Asia,
The most important is that we have very systemic and strict staff policy. Our quality management teams are all strict persons and machines, the system has also been successfully approved by the ISOQAR to the standard ISO9001:2000.

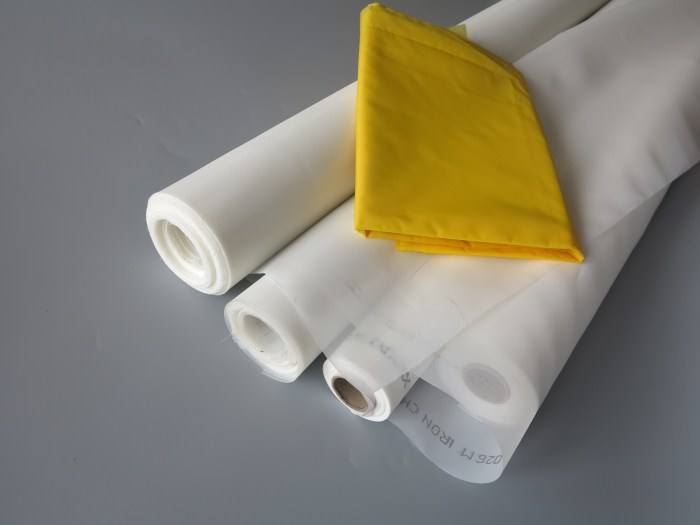

The mesh is mainly used in silk screen printing, flour area, filtration area, insect proofing, etc.

Our Mission is: Best quality and price products speak louder than anything!

​
