Micron Open Size 25um-1000 um, Mesh Count 15 Mesh- 460 Mesh Per Inch, White Or Yellow Direct Manufacture

What that number on the side of your polyester printing screen means? It's the mesh-count. what tells you how many holes per inch.

40 MESH

Artwork: Extremely low detail. Seriously, it's like printing through a screen door.

Inks: Really thick inks, or inks with large particles, like glitter inks.

Used For: Glitter, mostly.

86 MESH

Artwork: Very low detail. If you are using text, it should be very large.

Inks: Thick, marshmallow or (creamy) peanut butter textured inks are best. Runny inks are a poor choice for this mesh.

Used For: Metallic and glitters with smaller particles.

110 MESH

Artwork: No lines thinner than 1 point (or about the thickness of a pencil lead). Gradations not recommended unless using a very large-dot halftone pattern. Great for large fields of ink.

Inks: Great choice for many white ink prints. Thick, tough to print inks can be used a little easier through 110 mesh.

Used For: White ink on dark fabrics.

155-160 MESH

Artwork: Somewhat fine details with some gradation (halftone) capturing capabilities. Text down to 10 points is not usually a problem.

Inks: Most inks, including some thicker ones, like white can be used with 155 mesh. Runnier inks can be used, but off-contact (a small gap between the printing screen and the garment surface) may be recommended.

Used For: This is a good general-purpose mesh.

200 MESH

Artwork: Finer details and knockout lines (a field of ink with an unprinted line inside it) around 2 pts. Gradations up to a 50 line screen and small text.

Inks: Thinner inks and darker colors. Light colored inks can be used, but good coverage may require more passes with the squeegee.

Used For: Prints with higher detail and thinner coverage requirements. Small text. Also good for some sign printing.

220-230 MESH

Artworks: Small text and logos needing a crisper edge. .5 point lines and gradations needing 4 or 5 tonalities.

Inks: Thinner inks—as with 200. Some white ink possible, but large fields can be problematic.

Used For: Sponsor logo designs that have many small lines and tiny text. Also good for some sign printing.

305 MESH

Artwork: Very fine details like the kind used on true 4-color process or 60 lines-per-inch halftone screens or higher.

Inks: Thin inks. Process inks. White ink is heavily discouraged.

Used For: Very fine details and problem lines, dots, and text, or low-opacity images.

Gezi screen mesh factory is one of the leading manufactuer and exporter of all kinds of screen mesh products in China.
We' re concentrated in Screen printing mesh, Flour sieve mesh,Nylon filter mesh,Polyester filter mesh,PE mesh, HDPE filter mesh,Insect net, Mesh filter bag, Mesh filter disc, ect. All mesh products have passed Quality Management System ISO 9001 :2008.
We also have complete factory inspection report, no sillicon certificate, 100% nylon or polyester material certificate, mesh aperture size certificate, etc.

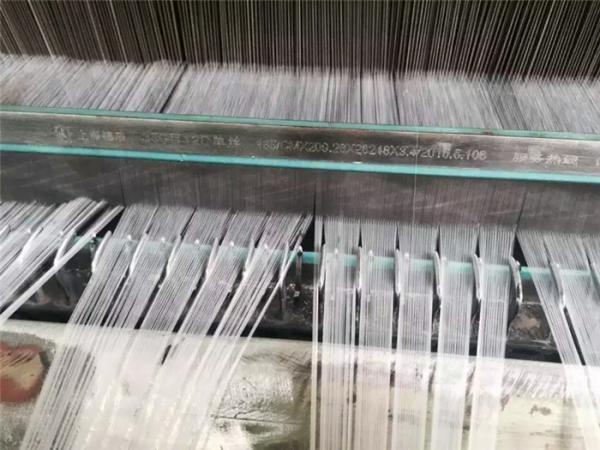

Our screen mesh workshop is equipped with 100 Swiss Sulzer ruti weaving machines, 4 Benninger high speed warping machines, 1 water washing heat setting machines. The width of weaving machines: 280cm, 330cm, 360cm, 390cm.

Our PE or HDPE worhshops have 80 looms, with 10-15 workers, 3 sets drawing workshops, with big output per year.

Countries USA, Canada, Mexico, Venezuela, UK, Spain, Pakistan, Thailand, Malaysia, Turkey, Australia, Egypt, India, Brazil,etc. are main exporters of us at present, and other customers from Europe, America, Middle east, Southeast Asia,
The most important is that we have very systemic and strict staff policy. Our quality management teams are all strict persons and machines, the system has also been successfully approved by the ISOQAR to the standard ISO9001:2000.
The mesh is mainly used in silk screen printing, flour area, filtration area, insect proofing, etc.

Our Mission is: Best quality and price products speak louder than anything!

​
